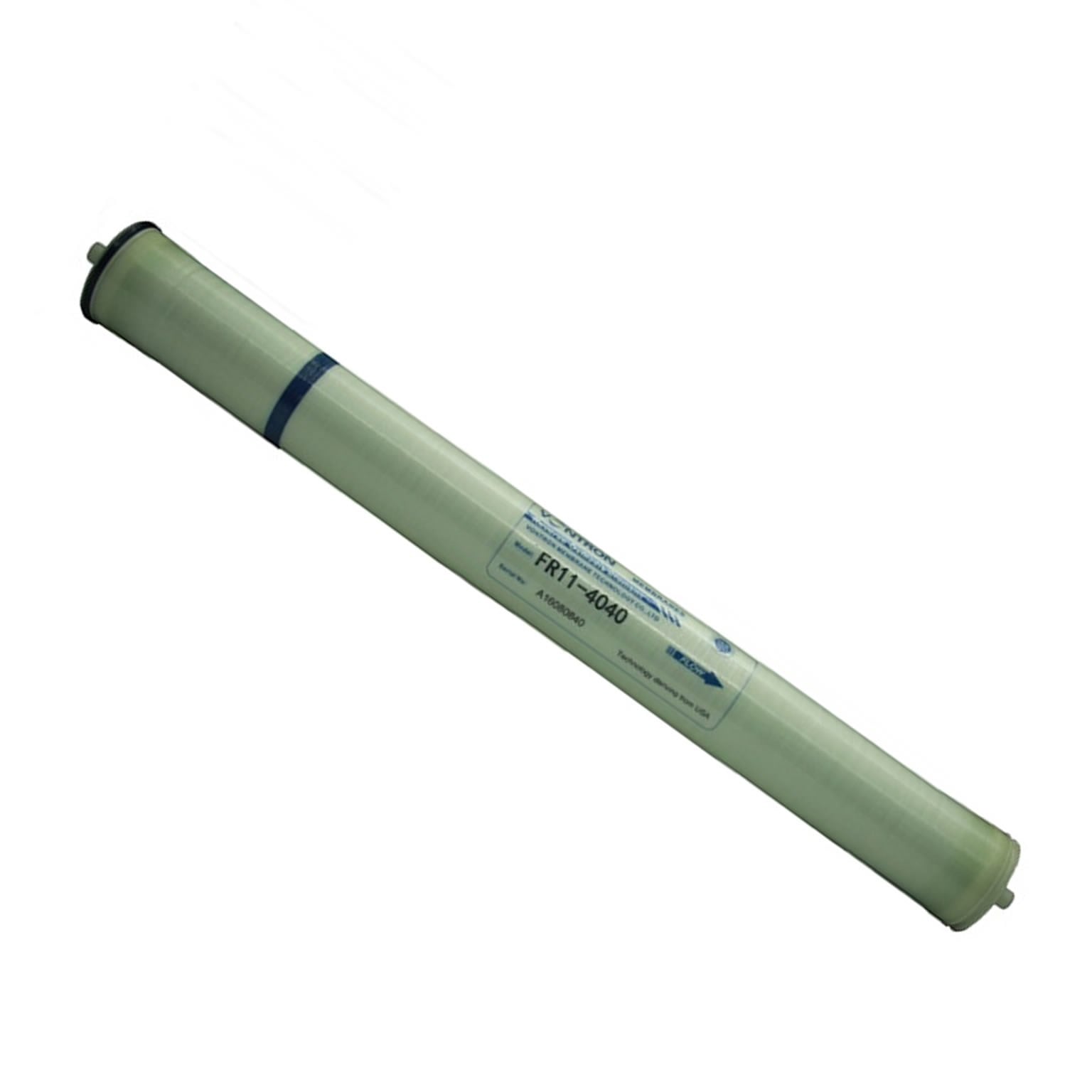

Vontron FR11-4040 Yüksek Kirlilik Membranı (BDR-FR11-4040)

FR11-4040 Fouling Resistant RO Membrane Elements - FR Series Product Presentation Application FR Series RO Membrane Element utilizes specialized manufacture technique that can improve the hydrophilicity, electric charge and roughness of its surface, thus reducing the breeding and adsorption of pollutants and microbes on membrane surface. ◎ Pure water production from surface water, for example: lake water, river water, etc. ◎ Desalination of Reclaimed water, for example: Reclaimed water, industrial wastewater, ROconcentrated water, etc. Product Performance Model Stable Rejection Rate(%) Permeate Flow GPD(m 3/d) Active Membrane Area ft2 (m2 ) FeedSpacerThicknessmil FR11-4040 99.5 2200(8.3) 90(8.4) 341、Operating pressure 225 psi (1.55 MPa) 2000 mg/L NaCl solution Temperature at 25℃ pH 7.0 ± 0.5 Recovery rate at 15% 2、Each membrane element may have ±15% variation of permeate flow. Operating Conditions & Limits Important information Maximum operating pressure psi(MPa) 600(4.14) 〇 Before the membrane element leaves the factory, The dry membrane element has nopreservation solution, The wet membrane element has 1.0% sodium bisulfite (in winter, add10%of propylene glycol antifreeze) as the preservation solution for storage treatment andusevacuum packaging. 〇 Dry membrane elements should always be maintained wet after Soaking; whenwet membrane elements are not used for a long time, preservation solution is needed to soak theelements. 〇 When the membrane element is used for the first time, it is recommended to flush it first for 15-25 minutes at low pressure (not suitable for soaking or soaking overnight), and then flushit for 60-90 minutes at high pressure (the water flow should not be less than 50% of the systemdesign water flow). 〇 The permeate water and concentrated water within the first hour of the initial operationof the membrane element should all be discharged. 〇 The operating limits and operational guidelines given in this technical information arepart of the limitations of the three-year warranty on the membrane element. 〇 The addition of any chemicals that may affect the membrane element during storageandoperation is prohibited, and Vontron Technology will not be liable for any consequencesarising from the use of such chemicals. 〇 Please refer to the Product Manual for details on installation, commissioning, storage, andtransportation of membrane elements.
